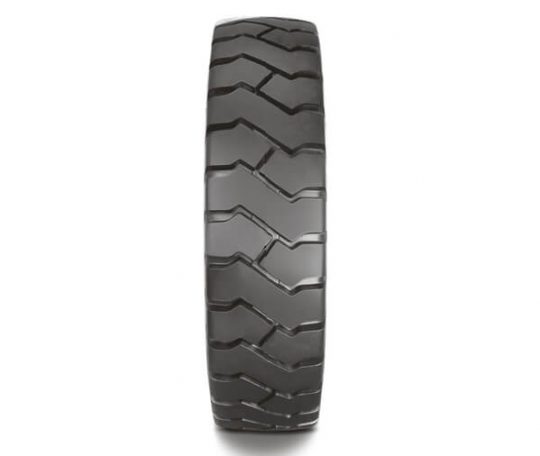

OTR - ELEVATA
Port
Designed for heavy-duty applications like forklifts and material handlers the ELEVATA delivers the enhanced stability and load distribution the equipment needs. The ELEVATA provides excellent durability and high resistance to wear, tear and cuts.
Features & Benefits:
A specially designed heavy-duty tyre, the ELEVATA is perfect for forklifts and material handlers.
Alternate continuous lugs with high contact areas provide maximum stability and load distribution. A tough casing imparts excellent durability while a superior tread compound offers high resistance to wear, tear and cuts.
The ELEVATA is recommended for use on forklifts.
|
Rim Size
In |
Size
|
LI/SS
|
Type
|
PR
|
Rim
|
Unloaded Dimension
|
SLR
|
RC
|
Infl. Press
|
Load capacity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Lift Truck |
Side loader
|
Other Vehicle
|
||||||||||||||||||
|
SW
|
OD
|
Steering wheel | Load wheel | |||||||||||||||||
| Speed Kmph/ mph | ||||||||||||||||||||
| 25 | 35 | 25 | 35 |
Static
|
25 | 35 | 10 | 25 | 50 | |||||||||||
| mm | mm | mm | mm | bar | 16 | 22 | 16 | 22 | 15 | 22 | 5 | 15 | 30 | |||||||
| in | in | in | in | psi | Recommended Load kg/lbs | |||||||||||||||
|
15
|
8.25-15
|
149A5
|
TT
|
14
|
6.5
|
236
9 |
847
33 |
386
15 |
2515
99 |
8.3 | 3250 | 3010 | 4225 | 4060 | 4910 | 3250 | 3010 | 4225 | 3250 | 2730 |
| 120 | 7160 | 6630 | 9315 | 8940 | 10810 | 7160 | 6630 | 9315 | 7160 | 6010 | ||||||||||
|
Rim Size
In |
Size
|
LI/SS
|
Type
|
PR
|
Rim
|
Unloaded Dimension
|
SLR
|
RC
|
Infl. Press
|
Load capacity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Lift Truck |
Side loader
|
Other Vehicle
|
||||||||||||||||||
|
SW
|
OD
|
Steering wheel | Load wheel | |||||||||||||||||
| Speed Kmph/ mph | ||||||||||||||||||||
| 25 | 35 | 25 | 35 |
Static
|
25 | 35 | 10 | 25 | 50 | |||||||||||
| mm | mm | mm | mm | bar | 16 | 22 | 16 | 22 | 15 | 22 | 5 | 15 | 30 | |||||||
| in | in | in | in | psi | Recommended Load kg/lbs | |||||||||||||||
|
15
|
8.25-15
|
146A5
|
TT
|
12
|
6.5
|
236
9 |
847
33 |
386
15 |
2515
99 |
7 | 3000 | 2780 | 3750 | 3750 | 4530 | 3000 | 2780 | 3900 | 3000 | 2520 |
| 104 | 6610 | 6120 | 8590 | 8260 | 9980 | 6610 | 6120 | 8590 | 6610 | 5550 | ||||||||||
|
Rim Size
In |
Size
|
LI/SS
|
Type
|
PR
|
Rim
|
Unloaded Dimension
|
SLR
|
RC
|
Infl. Press
|
Load capacity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Lift Truck |
Side loader
|
Other Vehicle
|
||||||||||||||||||
|
SW
|
OD
|
Steering wheel | Load wheel | |||||||||||||||||
| Speed Kmph/ mph | ||||||||||||||||||||
| 25 | 35 | 25 | 35 |
Static
|
25 | 35 | 10 | 25 | 50 | |||||||||||
| mm | mm | mm | mm | bar | 16 | 22 | 16 | 22 | 15 | 22 | 5 | 15 | 30 | |||||||
| in | in | in | in | psi | Recommended Load kg/lbs | |||||||||||||||
|
12
|
7.00-12
|
134A5
|
TT
|
14
|
5.00K
|
192
8 |
683
27 |
311
12 |
2027
80 |
9 | 2120 | 1960 | 2755 | 2650 | 3200 | 2120 | 1960 | 2755 | 2120 | 1780 |
| 131 | 4675 | 4320 | 6075 | 5840 | 7055 | 4675 | 4320 | 6075 | 4675 | 3925 | ||||||||||
|
Rim Size
In |
Size
|
LI/SS
|
Type
|
PR
|
Rim
|
Unloaded Dimension
|
SLR
|
RC
|
Infl. Press
|
Load capacity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Lift Truck |
Side loader
|
Other Vehicle
|
||||||||||||||||||
|
SW
|
OD
|
Steering wheel | Load wheel | |||||||||||||||||
| Speed Kmph/ mph | ||||||||||||||||||||
| 25 | 35 | 25 | 35 |
Static
|
25 | 35 | 10 | 25 | 50 | |||||||||||
| mm | mm | mm | mm | bar | 16 | 22 | 16 | 22 | 15 | 22 | 5 | 15 | 30 | |||||||
| in | in | in | in | psi | Recommended Load kg/lbs | |||||||||||||||
|
12
|
7.00-12
|
133A5
|
TT
|
12
|
5.00K
|
192
8 |
683
27 |
311
12 |
2027
80 |
8.5 | 2060 | 1905 | 2680 | 2575 | 3110 | 2060 | 1905 | 2680 | 2060 | 1730 |
| 123 | 4540 | 4200 | 5910 | 5675 | 6855 | 4540 | 4200 | 5910 | 4540 | 3815 | ||||||||||
|
Rim Size
In |
Size
|
LI/SS
|
Type
|
PR
|
Rim
|
Unloaded Dimension
|
SLR
|
RC
|
Infl. Press
|
Load capacity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Lift Truck |
Side loader
|
Other Vehicle
|
||||||||||||||||||
|
SW
|
OD
|
Steering wheel | Load wheel | |||||||||||||||||
| Speed Kmph/ mph | ||||||||||||||||||||
| 25 | 35 | 25 | 35 |
Static
|
25 | 35 | 10 | 25 | 50 | |||||||||||
| mm | mm | mm | mm | bar | 16 | 22 | 16 | 22 | 15 | 22 | 5 | 15 | 30 | |||||||
| in | in | in | in | psi | Recommended Load kg/lbs | |||||||||||||||
|
10
|
6.50-10
|
122A5
|
TT
|
10
|
5.00F
|
177
7 |
588
23 |
267
11 |
1740
69 |
7.75 | 1500 | 1390 | 1950 | 1875 | 2265 | 1500 | 1390 | 1950 | 1500 | 1260 |
| 112 | 3305 | 3065 | 4300 | 4135 | 4995 | 3305 | 3065 | 4300 | 3305 | 2780 | ||||||||||
