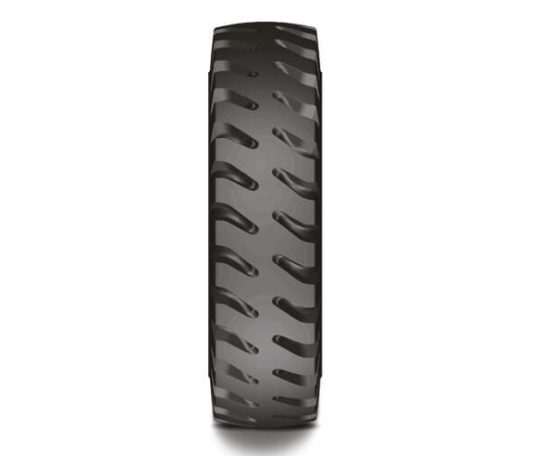

OTR - PORT XL PLUS
Port
The PORT XL PLUS ensures exceptional performance for heavy duty use on hard concrete and asphalt surfaces.
Additional benefits include reduced heat build-up, improved puncture resistance and a longer service life.
Suitable for extreme load conditions for reach stackers, container handlers and gantry crane applications.
Features & Benefits:
An industry-first, the PORT XL PLUS’s specifications deliver an extra deep tread that shoulders extreme load conditions for reach stackers, container handlers and gantry crane applications.
With a higher base cover compared to the IND 4, it delivers exceptional performance for heavy-duty use on hard concrete and asphalt surfaces.
A superior tread compound reduces heat build-up while a tough, and heady-duty carcass improves puncture resistance.
Add to all this a stronger bead, and you have a tyre that is built to last.
PORT XL PLUS is suitable for extreme load conditions for reach stackers, container handlers and gantry crane applications.
Rim Size
in |
Size
|
Type
|
PR
|
Rim
|
Unloaded Dimensions
|
SLR
|
RC
|
Infl. Press
| Load capacity | |||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Speed kmph/ mph | ||||||||||||||
SW | OD |
Static
| 25 | 10 | 5 | 1 | ||||||||
mm | mm | mm | mm | bar | 15 | 5 | 3 | 0.6 | ||||||
in | in | in | in | psi | Recommended load kg/ lbs | |||||||||
25
|
18.00-25
|
TL
|
40
|
13
|
505
19.9 |
1680
66.2 |
768
30.2 |
4975
195.9 |
10 | 30600 | 21250 | 22950 | 24650 | 27200 |
145 | 67460 | 46845 | 50595 | 54345 | 59965 |
